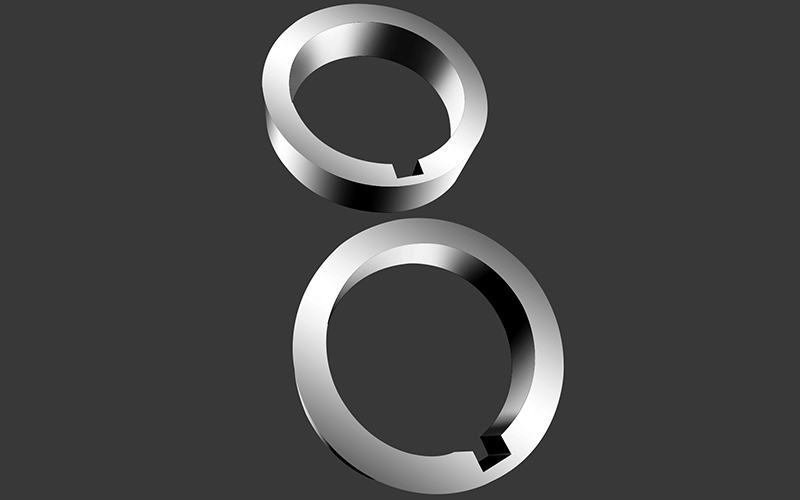

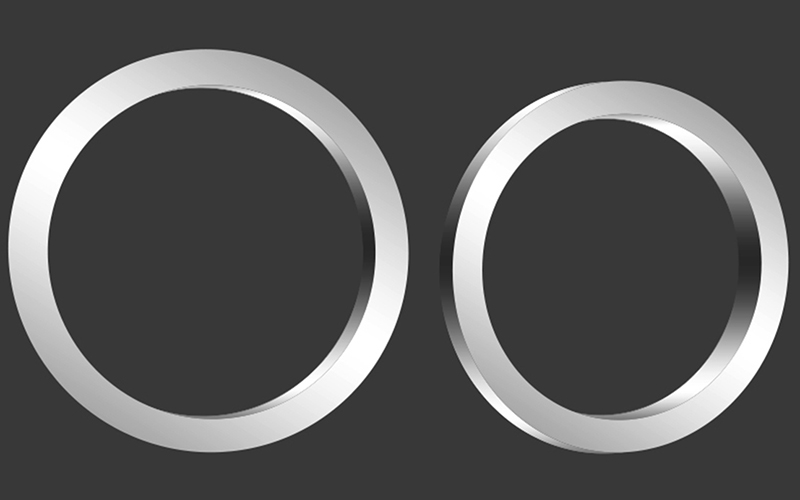

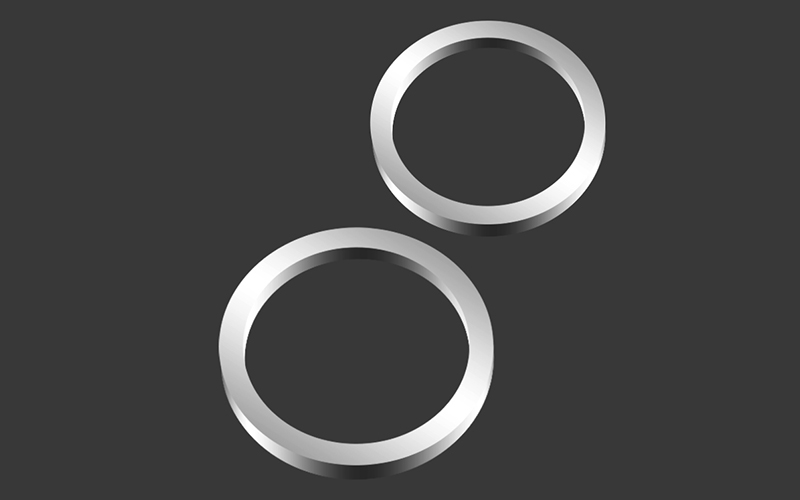

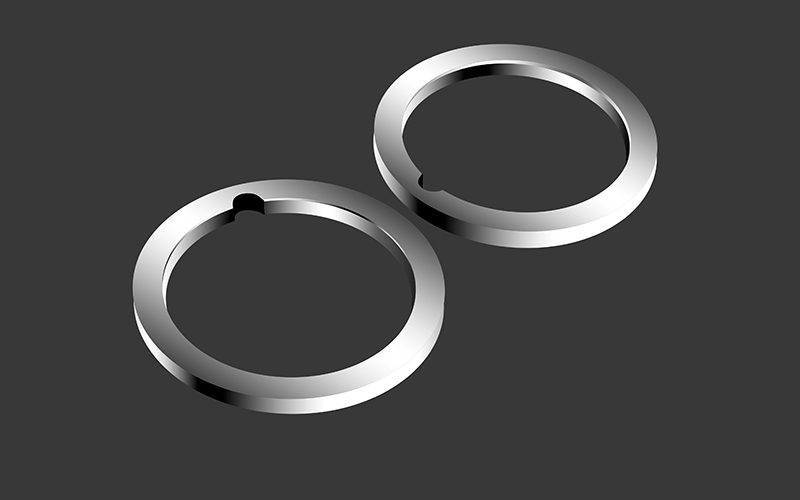

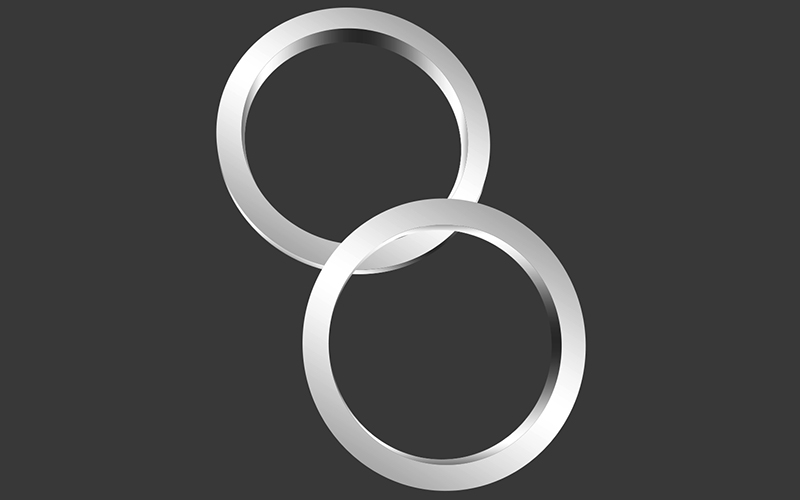

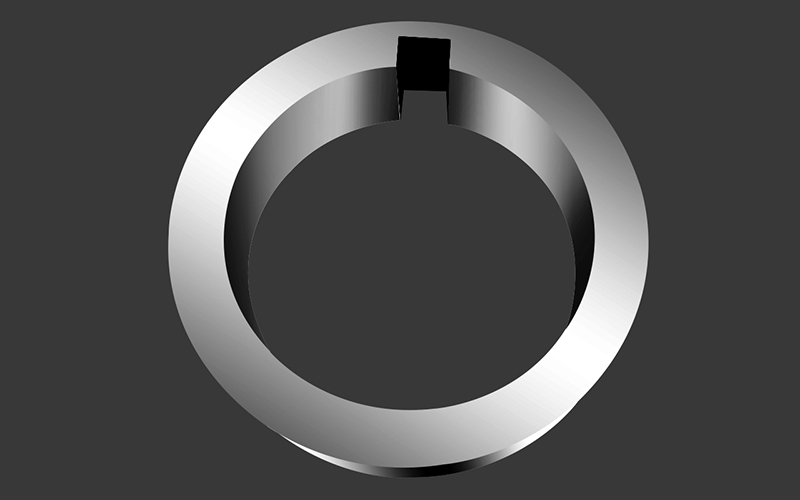

Spacers


Thickness tolerance +/-0.001 Flatness 0.002 Parallelism 0.002

Processing Material

Carbon steel, Stainless steel, High-strength steel, Aluminium, Copper

Regarding to high-precision requirements , We now can ensure that the thickness tolerance to +/-0.001mm .Therefore ,to inner circle ,its tolerance can be achieved to H13 .All inspections of high precision knife are made in the constant temperature room

All of our slitter knife , Spacers , are 6 times heat treatment

With the increasing requirements on the precision of sheet metal processing , We have developed ultra-high-precision cutting tools ,only the precision milling tools can match with its accuracy so far +/-0.001mm thickness tolerance and Ra0.1U surface roughness are our common standards .By using our technique and expertise ,We can meet customers high tolerance requirements in regard to thickness, parallelism ,flatness and so on

pro_detail2

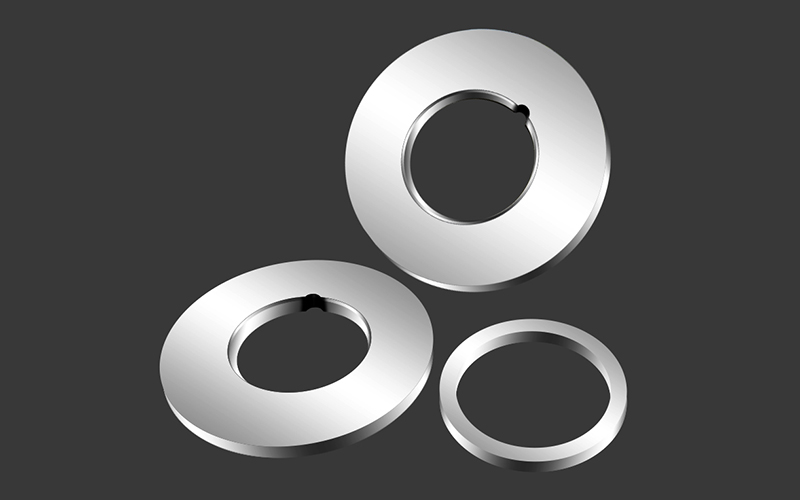

Slitter-Knife-(1)

Material Selection of Blade


Type of material to be cut  Thickness of material to be cut
  <0.6mm <1.5mm <3.0mm <6.0mm >6.0mm
Cold -rolled material  LS11 LS53 LS 51  LS11  LS53  LS11 LS53 LS7  LS7 LS6 LS13  LS7 LS 13
Hot-rolled  material      LS7  LS 6 LS7 LS6 LS13  LS7 LS 13
Electricla steel  Oriented  LS7  LS5
Unoriented  LS51 LS5 LS42
Stainless steel  LS7 LS5 LS53  LS7  LS53  LS7 LS6  LS7 LS6 LS13  LS7 LS13
Copper Aluminum Foil tape LS7 LS11 LS51  LS11 LS5 LS53  LS11 LS53 LS7  LS13 LS53 LS7  LS7 LS13
Hardened strip  TCT LS23 LS42 LS51  LS5 LS53 LS51
