Rubber Spacers

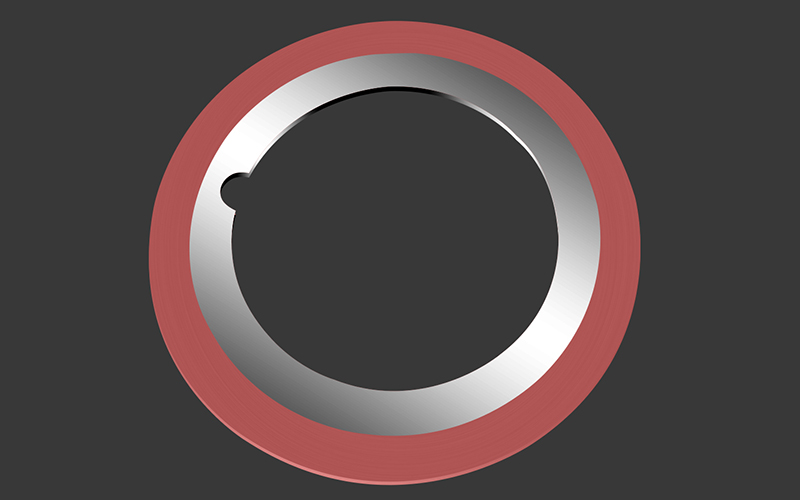

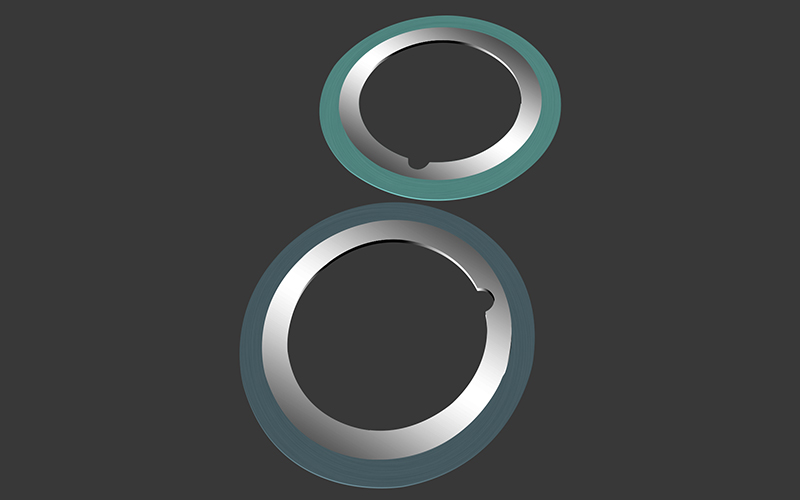

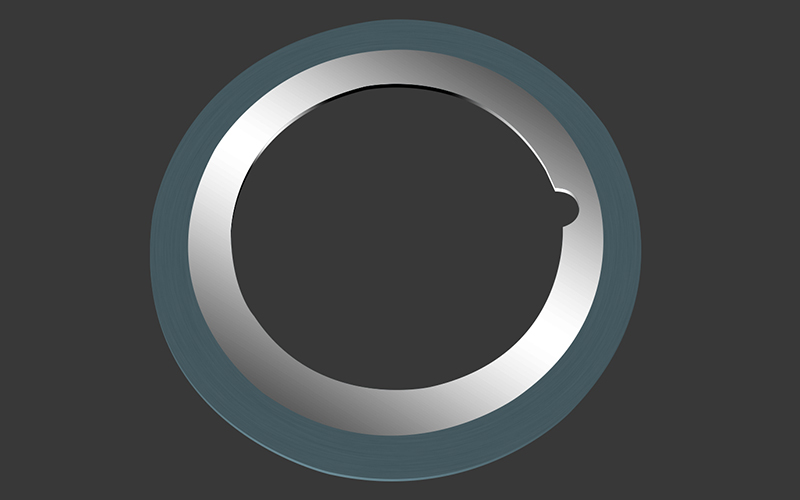

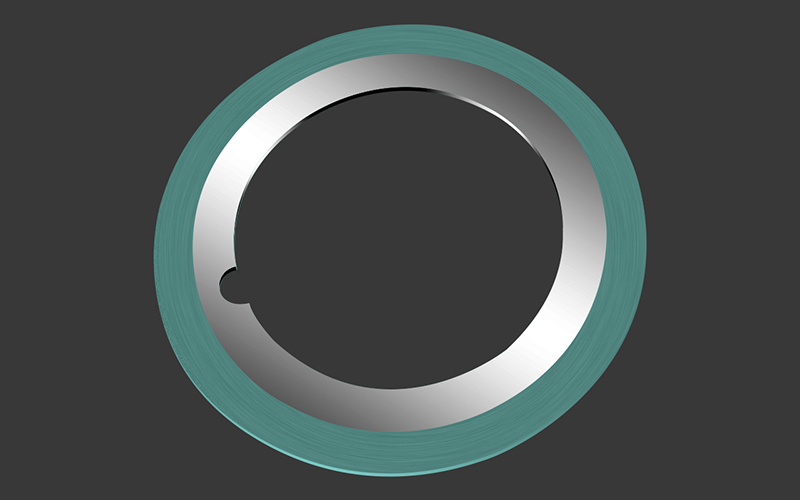

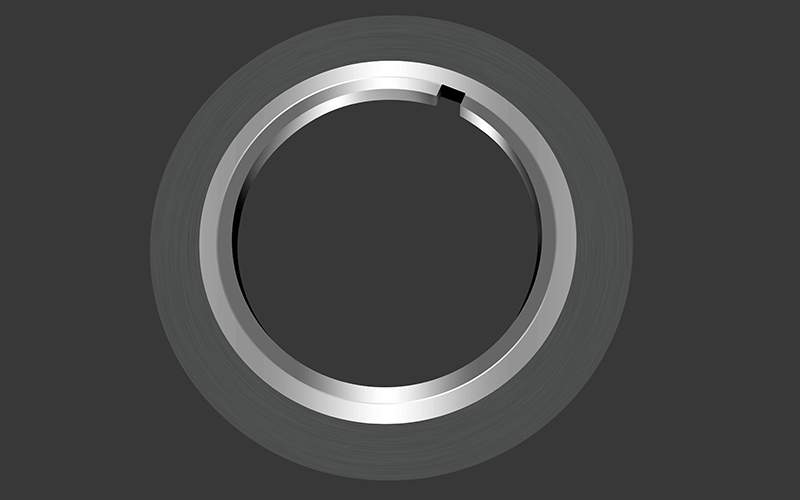

There are two types of rubber rings. Composite rubber rings and pure rubber rings Composite rubber rings are made of polyurethane on the outside and Steel ring inside. Pure rubber rings are made of single polyurethane and rubber, different materials use different rubber rings and hardness
Processing Material
Carbon steel, Stainless steel, High-strength steel, Aluminium, Copper
Regarding to high-precision requirements , We now can ensure that the thickness tolerance to +/-0.001mm .Therefore ,to inner circle ,its tolerance can be achieved to H13 .All inspections of high precision knife are made in the constant temperature room
All of our slitter knife , Spacers , are 6 times heat treatment
With the increasing requirements on the precision of sheet metal processing , We have developed ultra-high-precision cutting tools ,only the precision milling tools can match with its accuracy so far +/-0.001mm thickness tolerance and Ra0.1U surface roughness are our common standards .By using our technique and expertise ,We can meet customers high tolerance requirements in regard to thickness, parallelism ,flatness and so on
Material Selection of Blade
Type of material to be cut | Thickness of material to be cut | ||||
<0.6mm | <1.5mm | <3.0mm | <6.0mm | >6.0mm | |
Cold -rolled material | LS11 LS53 LS 51 | LS11 LS53 | LS11 LS53 LS7 | LS7 LS6 LS13 | LS7 LS 13 |
Hot-rolled material | LS7 LS 6 | LS7 LS6 LS13 | LS7 LS 13 | ||
Electricla steel | Oriented | LS7 LS5 | |||
Unoriented | LS51 LS5 LS42 | ||||
Stainless steel | LS7 LS5 LS53 | LS7 LS53 | LS7 LS6 | LS7 LS6 LS13 | LS7 LS13 |
Copper Aluminum Foil tape | LS7 LS11 LS51 | LS11 LS5 LS53 | LS11 LS53 LS7 | LS13 LS53 LS7 | LS7 LS13 |
Hardened strip | TCT LS23 LS42 LS51 | LS5 LS53 LS51 |
